Non-standard Automation Parts

Name: Non-standard Automation Parts
Brand: HRX MACHINING
SKU: HRX-AP-10

Fixtures, connector blocks and mechanism parts built to your machine layout.

Tolerance±0.02 mm

MOQ1 pc

Lead time10–18 days

AvailabilityMade to order

Part category

Material

Request a Quote WhatsApp

Description

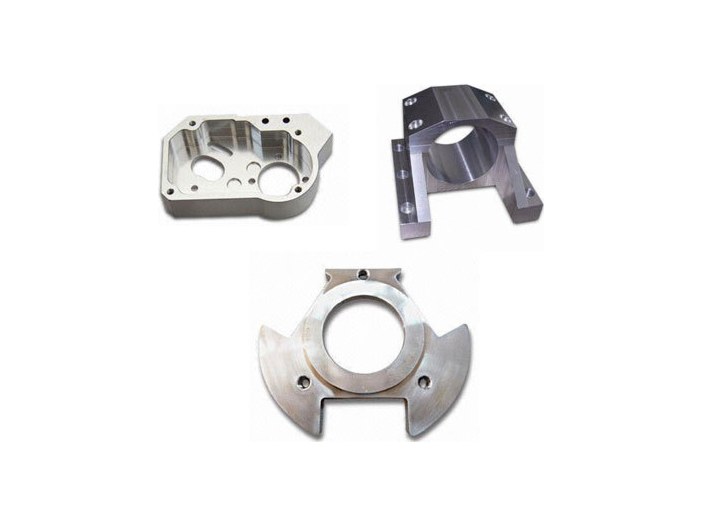

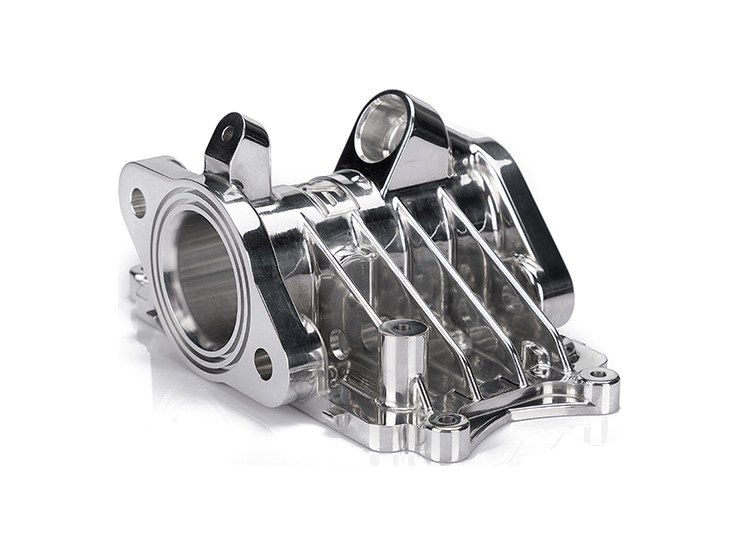

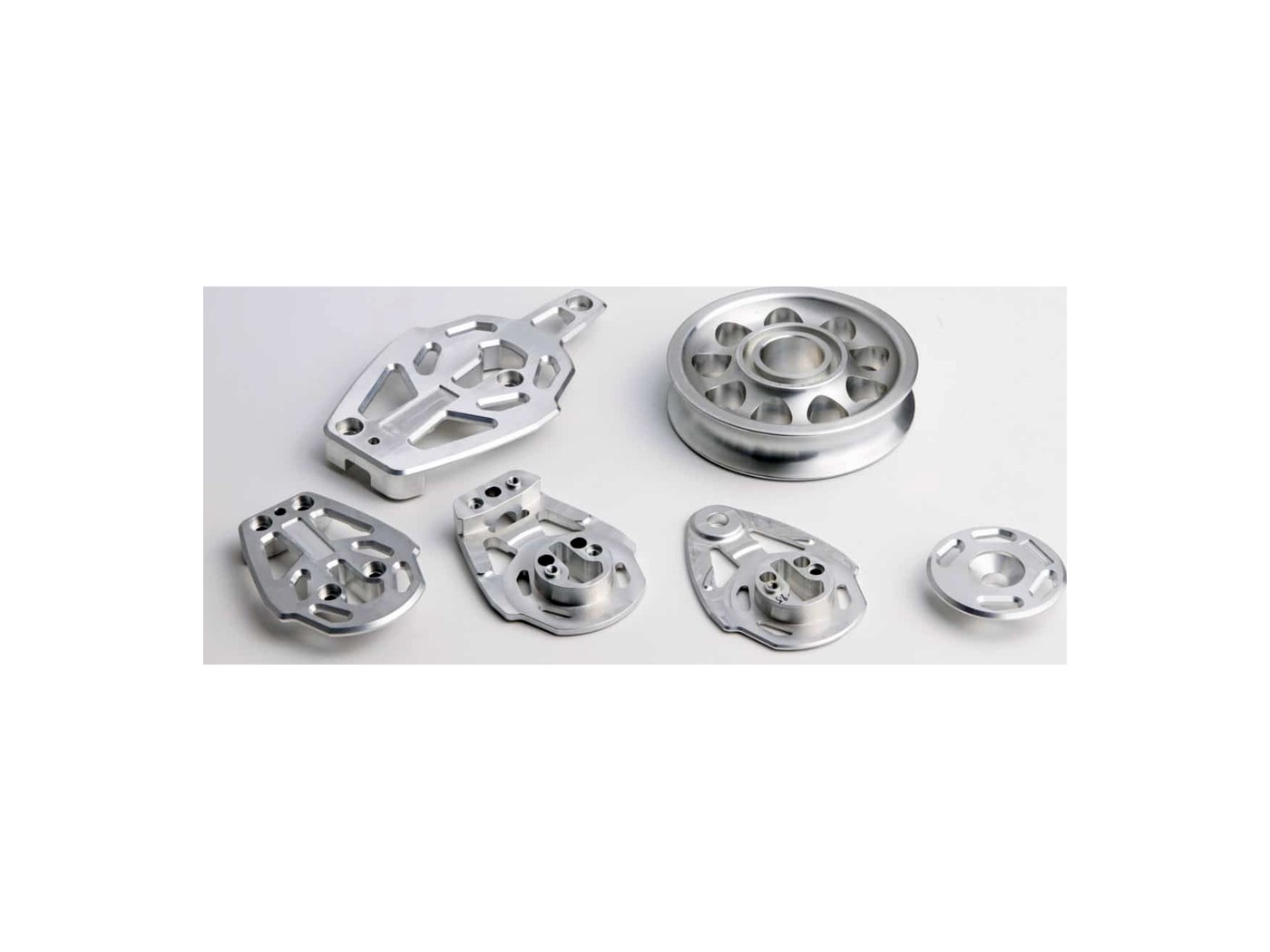

Automation projects rarely fail on concept — they fail on the small machined parts that arrive late or do not fit. We make connector blocks, sensor brackets, gripper fingers, linear-rail spacers and fixture bodies to your layout drawings, usually with tight relationships between hole patterns and datum faces. Send the assembly model and we will flag any feature that cannot be machined before you commit, which is usually where the real schedule saving comes from.

Specifications

Material	Aluminium / steel / stainless / POM
Dimensions	up to 800 × 600 × 500 mm
Tolerance	±0.02 mm critical, ±0.05 general
Bore tolerance	H7 on locating bores
Flatness	0.05 mm on mounting faces
Thread	metric, blind and through
Machine	3–5 axis CNC milling
Surface finish	Anodised / blackened / nickel / bare
MOQ	1 piece
Lead time	10–18 working days

Key features

Hole patterns referenced to datum faces
DFM feedback before production release
One-off and small series equally welcome
Steel parts blackened or nickel plated
Assembly-fit check before shipment

Applications

Assembly and test stations
Packaging machine modules
Conveyor and handling units
Robot end-of-arm tooling

Scope of delivery

Parts individually packed
Assembly drawing (PDF)
Dimensional report

Quality control

Every batch is checked on a coordinate measuring machine, with calipers, micrometers and gauge blocks on the shop floor. A dimensional report is available with each shipment and first-article inspection is free on series orders.

Frequently asked questions

What materials and finishes are available?

Aluminium 6061/7075/6063, stainless 303/304/316L, carbon steel, brass, copper C1100, titanium Ti-6Al-4V and engineering plastics such as POM and PEEK. For medical parts we can supply EN 10204 3.1 certificates and ISO 10993 compliant materials. Finishes include anodising (Type II and III), nickel plating, sandblasting, passivation, electropolishing and knurling.

How do you ship, and who handles customs?

DHL/FedEx/UPS express for prototypes and small batches, sea or rail freight for production volumes. We ship EXW, FOB, CIF, DAP or DDP — with DDP the duties and taxes are settled on our side so nothing is owed at customs.

How do you protect my design?

We sign an NDA before you send anything sensitive. Drawings are stored on an access-controlled server and only the programmers and operators assigned to your part can open them.
