Endoscope Precision Components

Name: Endoscope Precision Components
Brand: HRX MACHINING
SKU: HRX-MD-01

Miniature stainless and titanium parts for endoscopic instruments.

Tolerance±0.01 mm

MOQ10 pcs

Lead time15–20 days

AvailabilityMade to order

Material

Surface finish

Request a Quote WhatsApp

Description

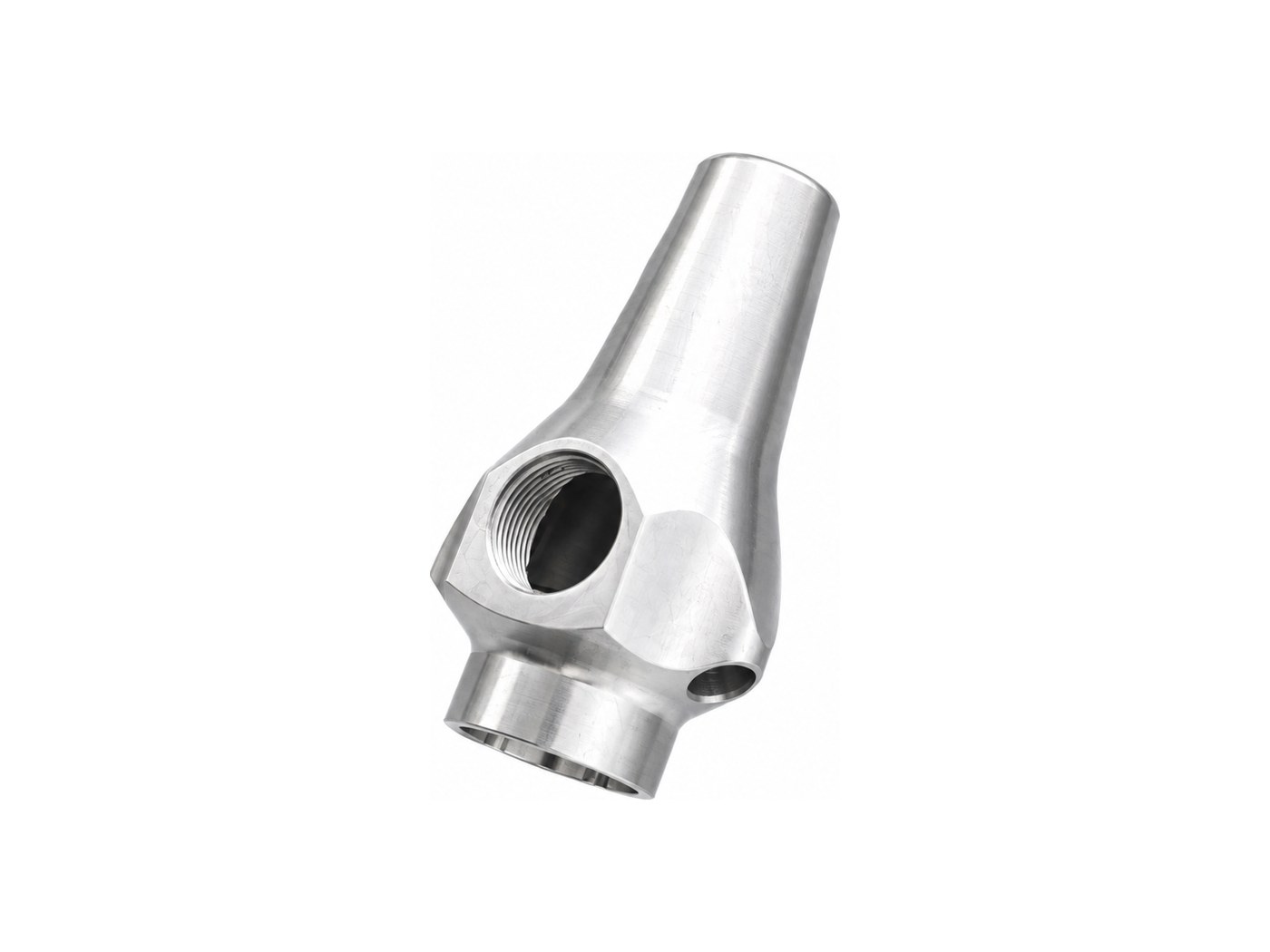

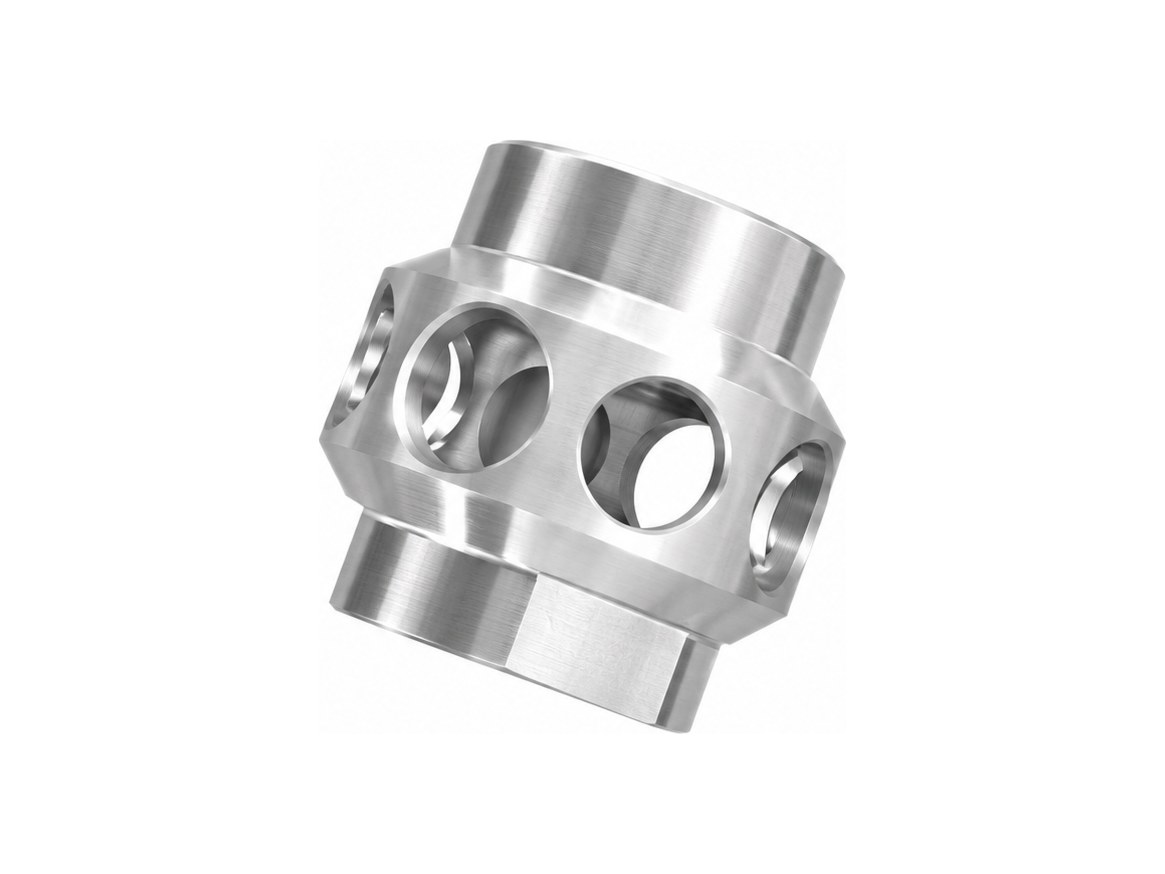

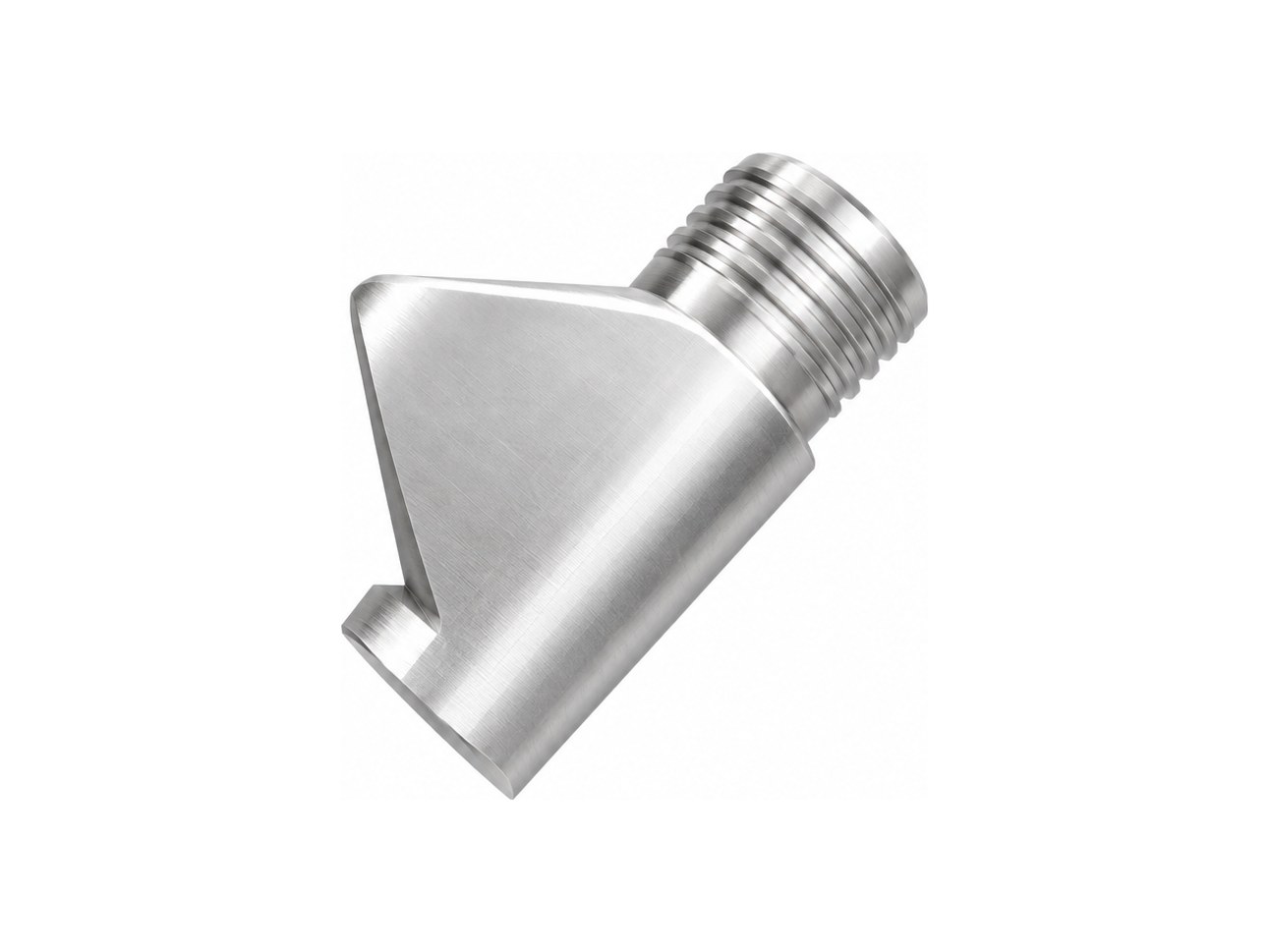

Endoscope components are small, complex and unforgiving — a burr you cannot see is a burr the surgeon will feel. We machine endoscope heads, connector bodies, articulation links and channel blocks from 316L stainless and Ti-6Al-4V, holding ±0.01 mm on mating features and deburring under a microscope to a specified edge break. Parts are cleaned in an ultrasonic bath, packed in a controlled area and supplied with material certificates, so they arrive ready for your assembly line.

Specifications

Material	Stainless 316L / 17-4PH / Titanium Ti-6Al-4V
Dimensions	Ø 3–60 mm, L up to 180 mm
Tolerance	±0.01 mm (critical ±0.005 mm)
Wall thickness	0.3 – 3.0 mm
Bore tolerance	H7 on locating bores
Surface roughness	Ra 0.4 µm (Ra 0.2 mirror)
Biocompatibility	ISO 10993 compliant material, cert. available
Sterilisation	Autoclave / EO / plasma compatible
Cleanliness	Ultrasonic cleaned, particle controlled
Machine	CNC turning + 4-axis milling, Swiss-type
Inspection	CMM, optical microscope, roughness tester
MOQ	10 pieces
Lead time	15–20 working days

Key features

±0.01 mm on mating and sealing features
Microscopic deburring to a defined edge break
Ultrasonic cleaned, packed in controlled area
Material certificate to EN 10204 3.1
ISO 13485 documented process on request

Applications

Rigid and flexible endoscopes
Laparoscopic instruments
Surgical handpieces
Diagnostic device housings

Scope of delivery

Individually packed in clean-room bags
Ultrasonic cleaned before packing
Material certificate enclosed
Full dimensional report per batch

Quality control

Every batch is checked on a coordinate measuring machine, with calipers, micrometers and gauge blocks on the shop floor. A dimensional report is available with each shipment and first-article inspection is free on series orders.

Frequently asked questions

What file formats do you accept?

STEP (.stp/.step) or IGES (.igs) for 3D, PDF or DWG for 2D drawings with tolerances and surface finish. If you only have a physical sample, we can reverse-engineer it — and a photo with the key dimensions is enough for a budget estimate.

What tolerances can you hold?

Standard machining tolerance is ±0.05 mm, and ±0.01 mm on features you mark as critical. Locating bores can be held to H7. Tell us which dimensions actually matter — over-tolerancing is the fastest way to raise cost without improving the part.

Is there a minimum order quantity?

No. We machine one piece as readily as one thousand. Unit price improves noticeably at 50, 200 and 1,000 pieces because setup and programming amortise, and we use the same programme and fixtures from prototype through to series.
