Video / Hunting / Sports Parts

Name: Video / Hunting / Sports Parts
Brand: HRX MACHINING
SKU: HRX-OP-30

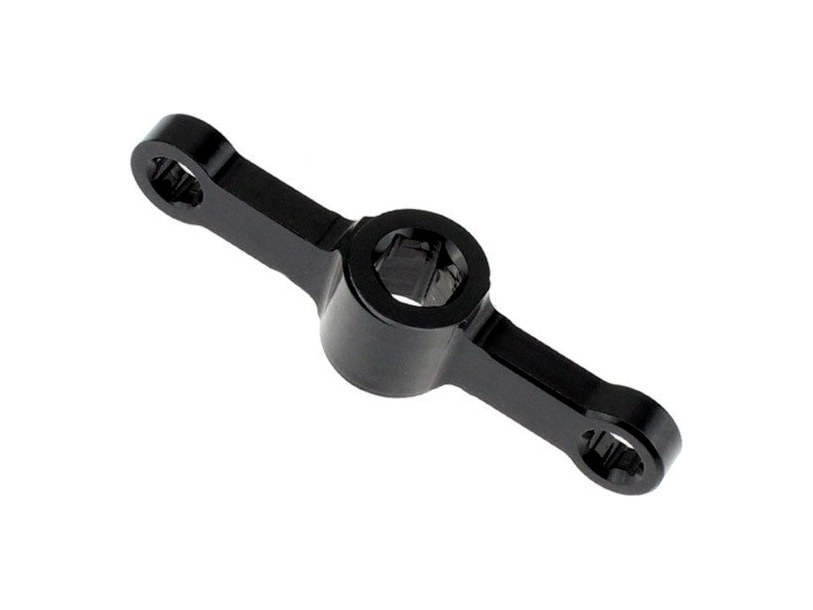

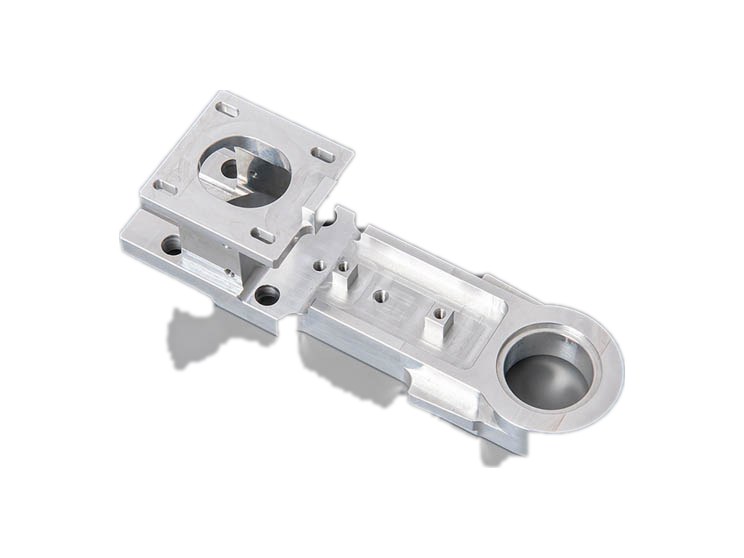

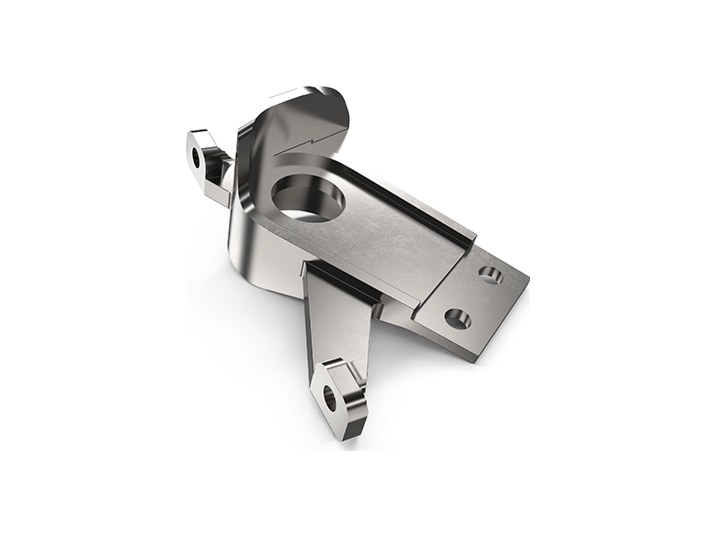

Tripod components, scope mounts and equipment brackets with repeatable fit.

Tolerance±0.03 mm

MOQ5 pcs

Lead time12–20 days

AvailabilityMade to order

Part type

Surface

Request a Quote WhatsApp

Description

Outdoor and filming equipment lives on repeatability: a mount that clamps differently every time is worse than no mount at all. We machine tripod spiders, quick-release plates, scope rings and camera cages where the clamping features are machined in one setup with the mounting interface, so the fit is identical every time. Hard anodising (Type III) is available for parts that get dragged over rock, and we can match existing interfaces if you are extending a product line.

Specifications

Material	Aluminium 6061-T6 / 7075-T6
Dimensions	per drawing, up to 400 mm
Tolerance	±0.03 mm
Wall thickness	1.5 – 8.0 mm
Surface roughness	Ra 1.6 µm
Thread	1/4"-20, 3/8"-16, M6, custom
Machine	3–5 axis CNC milling
Surface finish	Anodised II / III, blasted
MOQ	5 pieces
Lead time	12–20 working days

Key features

Clamping and interface in one setup
Type III hard anodising for wear
Existing interfaces can be matched
Repeatable fit, batch to batch
Low-glare finishes for field use

Applications

Camera tripods and heads
Rifle scope mounting
Filming rigs and cages
Sports and archery gear

Scope of delivery

Parts in protective sleeves
Screws and tools on request
Inspection report

Quality control

Every batch is checked on a coordinate measuring machine, with calipers, micrometers and gauge blocks on the shop floor. A dimensional report is available with each shipment and first-article inspection is free on series orders.

Frequently asked questions

How long does a quote take, and what about lead time?

Quotes are returned within 24 working hours, usually the same day for simple parts. Production lead time is typically 7–20 working days depending on complexity, material availability and finishing.

Can you work without a drawing?

Yes. Send a sample part and we will measure it and produce a drawing for your approval before machining. This is common for replacement parts and legacy equipment where no drawing exists.

What materials and finishes are available?

Aluminium 6061/7075/6063, stainless 303/304/316L, carbon steel, brass, copper C1100, titanium Ti-6Al-4V and engineering plastics such as POM and PEEK. For medical parts we can supply EN 10204 3.1 certificates and ISO 10993 compliant materials. Finishes include anodising (Type II and III), nickel plating, sandblasting, passivation, electropolishing and knurling.
