Water Cooling Fittings & Adapters

Name: Water Cooling Fittings & Adapters
Brand: HRX MACHINING
SKU: HRX-FT-04

G1/4" compression fittings, elbows, quick disconnects and adapters machined from brass or stainless steel.

Tolerance±0.02 mm

MOQ50 pcs

Lead time10–15 days

AvailabilityMade to order

Fitting type

Material / finish

Request a Quote WhatsApp

Description

A loop is only as leak-free as its weakest joint. We machine fittings from C3604 brass or 304 stainless steel on Swiss-type lathes, so the thread pitch, the sealing cone and the hex flats are all concentric in one setup — that is what stops a joint from weeping after a few thermal cycles. Bore surfaces that touch the O-ring are turned to Ra 0.4 µm or better, and every thread is checked with go/no-go gauges.Standard G1/4" BSPP is in stock; NPT, M14 or your own port geometry can be machined to drawing.

Specifications

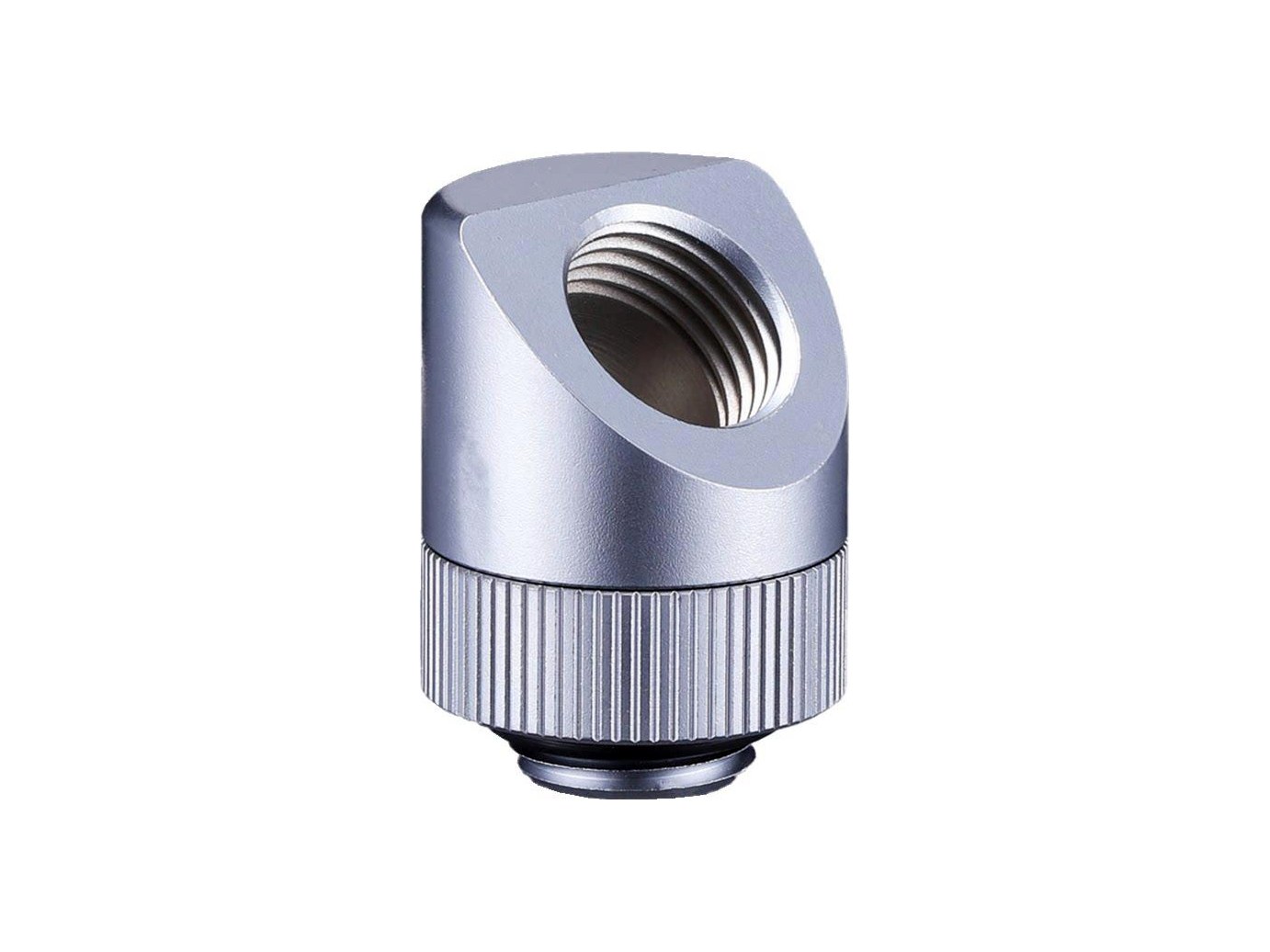

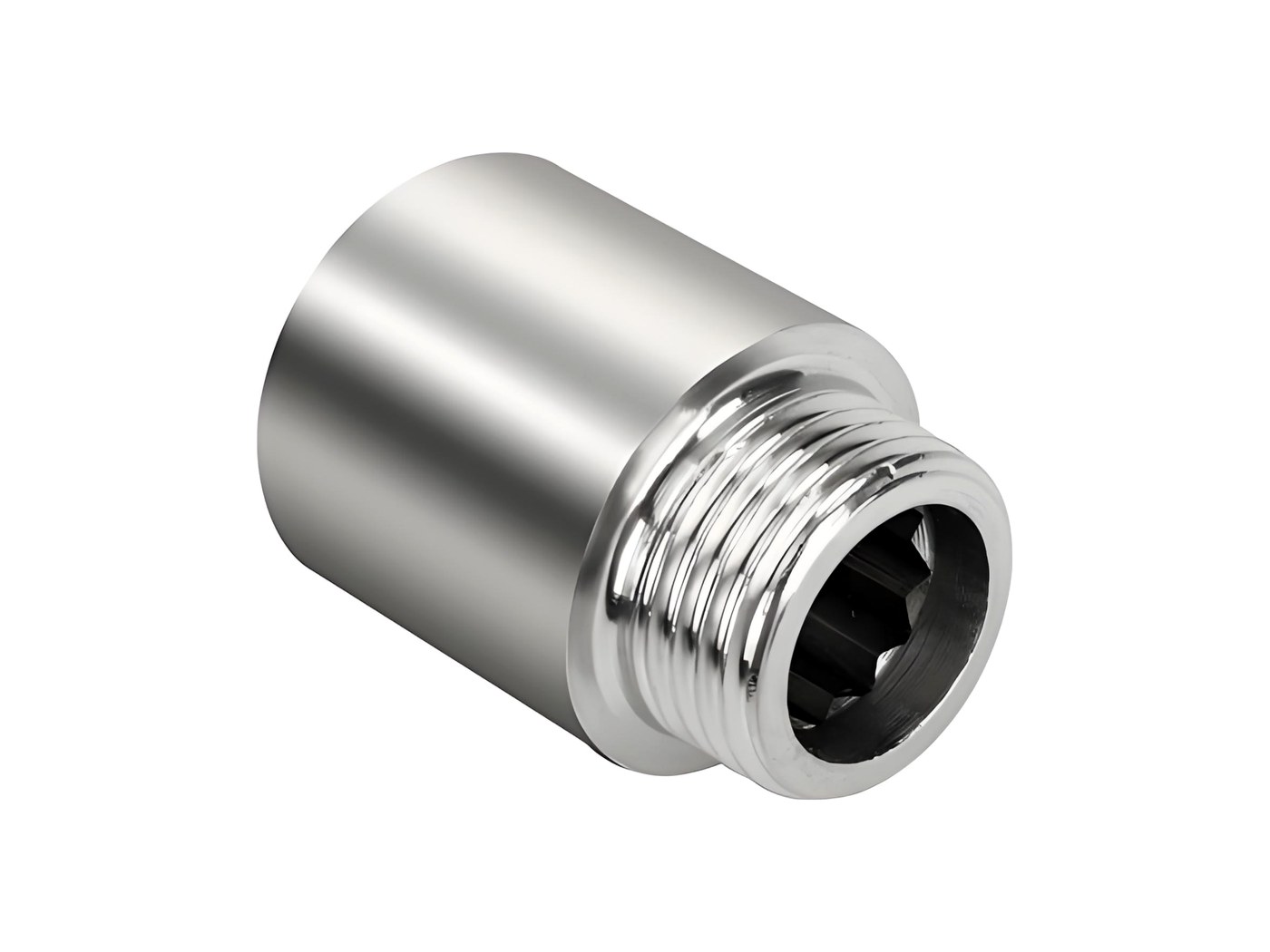

Fitting type	straight / 90° elbow / QDC / drain valve / adapter
Material	C3604 brass · 304 stainless · 6061 aluminium
Thread	G1/4" BSPP (NPT, M14 on request)
Tubing size	ID 10 mm / 12 mm (13 mm OD hard tube on request)
Seal	EPDM or NBR O-ring, hardness to your coolant
Tolerance	±0.02 mm on thread and seal diameter
Surface roughness	Ra 0.4 µm on O-ring sealing bore
Process	Swiss-type turning + milling, one setup
Surface finish	nickel plated / matte black chrome / brushed / anodised
Operating temp.	-20 °C to +120 °C
Pressure test	6 bar, 100 % tested
Leak test	100 % leak tested before shipment
Inspection	go/no-go thread gauge + visual, per lot
MOQ	50 pieces
Lead time	10–15 working days

Key features

Thread, seal cone and hex machined in one setup
O-ring bore turned to Ra 0.4 µm or better
100 % go/no-go thread gauge inspection
Knurled grip for hand tightening
G1/4" BSPP standard, other threads to drawing

Applications

Custom PC water cooling loops
GPU / CPU block port connections
Liquid cooling for servers and laser equipment
Industrial coolant and test rigs

Scope of delivery

Individual PE bag to prevent scratches
O-rings fitted or supplied loose
Pressure test record per lot

Quality control

Every batch is checked on a coordinate measuring machine, with calipers, micrometers and gauge blocks on the shop floor. A dimensional report is available with each shipment and first-article inspection is free on series orders.

Frequently asked questions

Can you work without a drawing?

Yes. Send a sample part and we will measure it and produce a drawing for your approval before machining. This is common for replacement parts and legacy equipment where no drawing exists.

What materials and finishes are available?

Aluminium 6061/7075/6063, stainless 303/304/316L, carbon steel, brass, copper C1100, titanium Ti-6Al-4V and engineering plastics such as POM and PEEK. For medical parts we can supply EN 10204 3.1 certificates and ISO 10993 compliant materials. Finishes include anodising (Type II and III), nickel plating, sandblasting, passivation, electropolishing and knurling.

How do you ship, and who handles customs?

DHL/FedEx/UPS express for prototypes and small batches, sea or rail freight for production volumes. We ship EXW, FOB, CIF, DAP or DDP — with DDP the duties and taxes are settled on our side so nothing is owed at customs.
