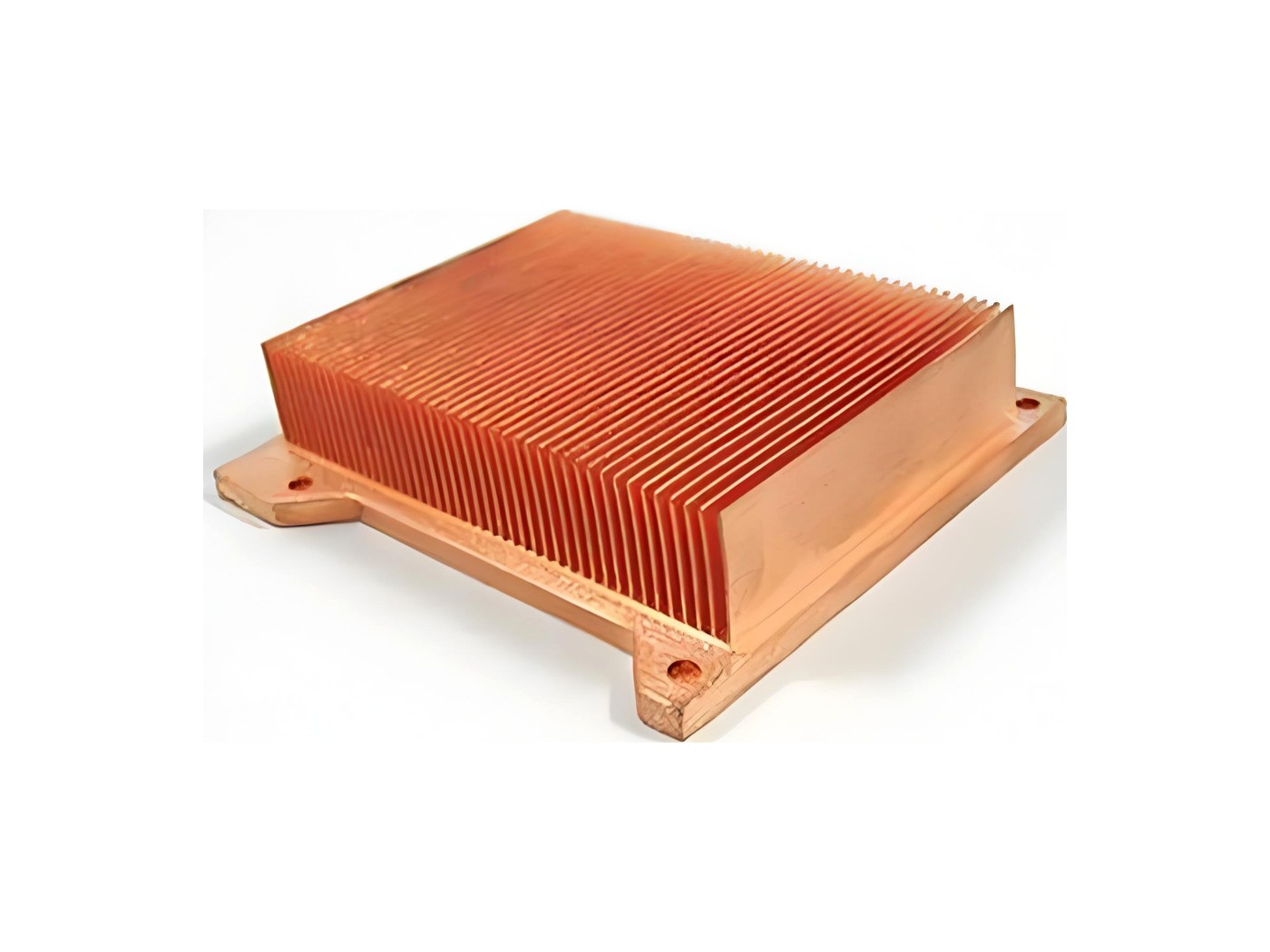

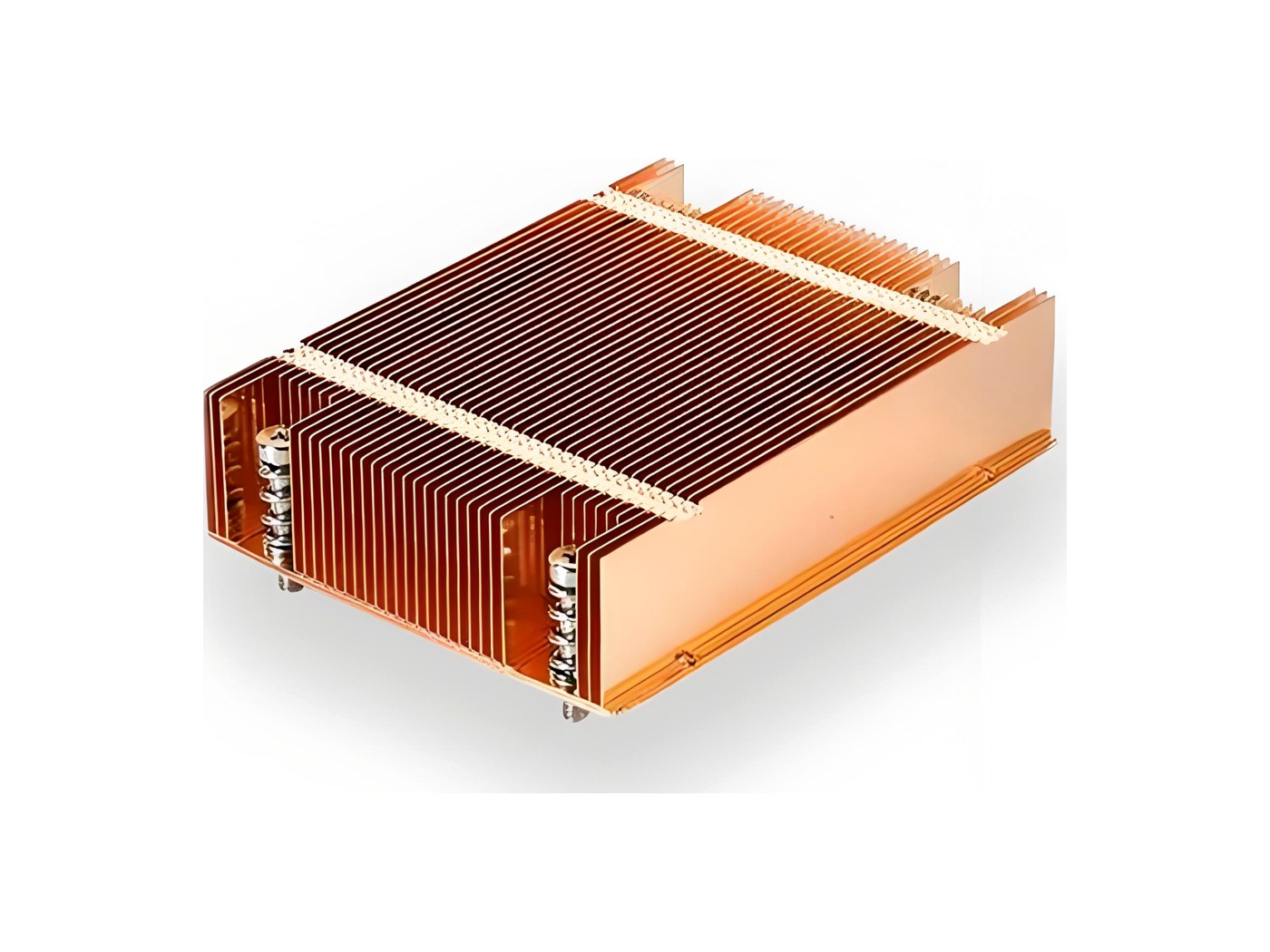

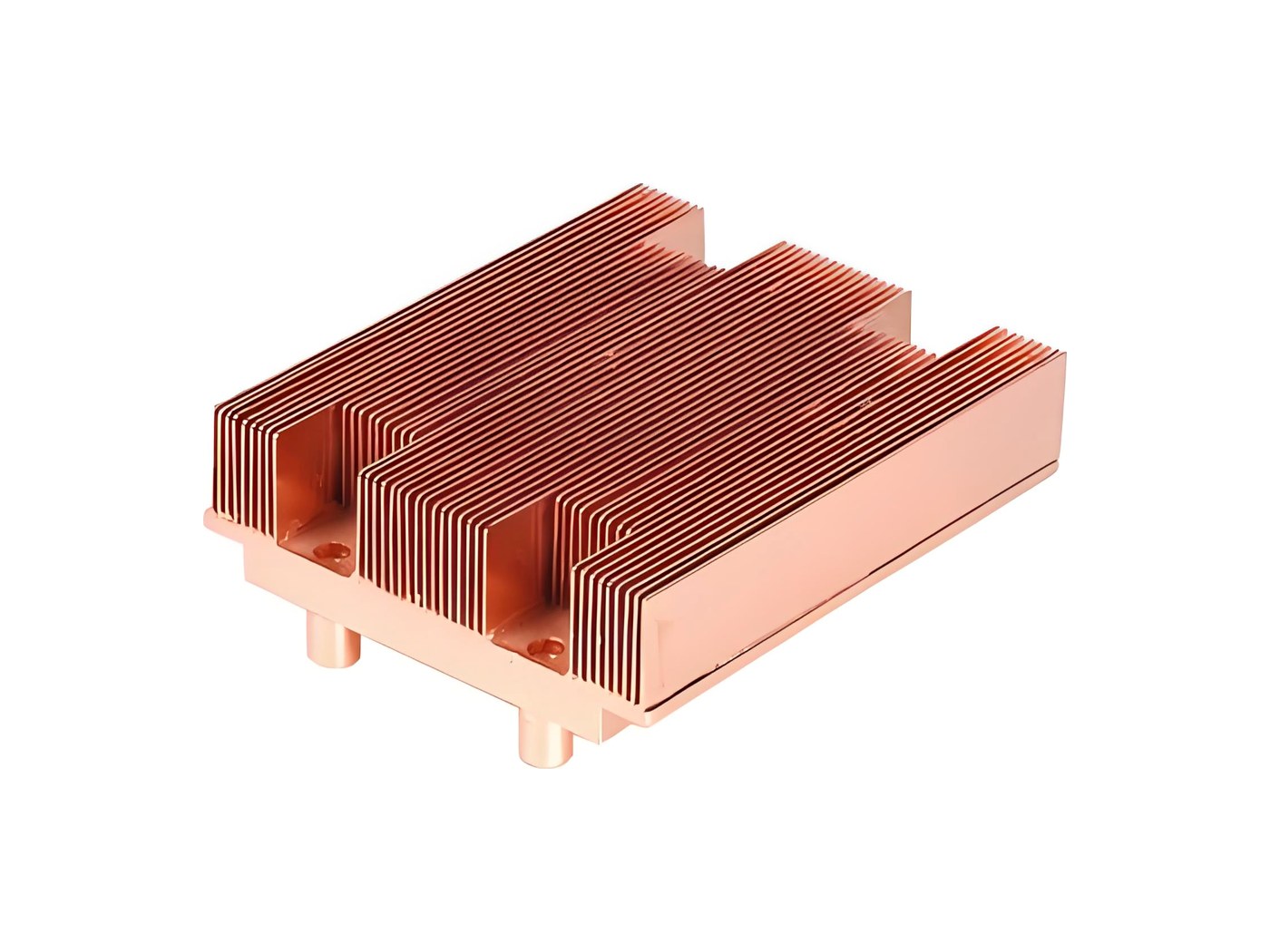

Skived Fin Heatsink

Name: Skived Fin Heatsink
Brand: HRX MACHINING
SKU: HRX-HS-03

One-piece copper or aluminium fin stack, fins integral with the base.

Tolerance±0.05 mm

MOQ50 pcs

Lead time18–25 days

AvailabilityMade to order

Material

Fin height

Request a Quote WhatsApp

Description

Skiving cuts fins out of a solid block, so the fin and the base are one continuous piece of metal with no thermal interface between them. That removes the joint resistance you get with bonded or soldered fins, and it lets us push fin pitch down to 0.3 mm with heights up to 60 mm without the fins collapsing under the tool. For high-density air cooling or as the fin side of a hybrid liquid block, skived stacks outperform anything assembled from separate parts.

Specifications

Material	Copper C1100 / Aluminium 6063-T5 / 1050
Dimensions	up to 200 × 150 mm footprint
Fin structure	0.3 – 2.0 mm pitch, 15 – 60 mm height
Flatness	0.03 mm on mounting face
Thermal resistance	0.10 – 0.35 °C/W (air, depends on CFM)
Tolerance	±0.05 mm
Process	Skiving + CNC milling
Surface finish	Nickel plated / anodised / bare
Machine	Skiving line + 3-axis CNC
Typical volume	50 – 5,000 pcs / month
MOQ	50 pieces
Lead time	18–25 working days

Key features

Fin and base are one piece — no joint resistance
Fin pitch down to 0.3 mm, height up to 60 mm
No solder, no adhesive, no galvanic corrosion
Copper or aluminium from one supplier
Machined mounting features and cut-outs

Applications

High-density air cooling
Hybrid liquid cooling modules
Telecom and 5G equipment
Power supply and inverter cooling

Scope of delivery

Fins protected with foam insert
Stacked in export cartons
Dimensional report per batch

Quality control

Every batch is checked on a coordinate measuring machine, with calipers, micrometers and gauge blocks on the shop floor. A dimensional report is available with each shipment and first-article inspection is free on series orders.

Frequently asked questions

Is there a minimum order quantity?

No. We machine one piece as readily as one thousand. Unit price improves noticeably at 50, 200 and 1,000 pieces because setup and programming amortise, and we use the same programme and fixtures from prototype through to series.

How long does a quote take, and what about lead time?

Quotes are returned within 24 working hours, usually the same day for simple parts. Production lead time is typically 7–20 working days depending on complexity, material availability and finishing.

Can you work without a drawing?

Yes. Send a sample part and we will measure it and produce a drawing for your approval before machining. This is common for replacement parts and legacy equipment where no drawing exists.
