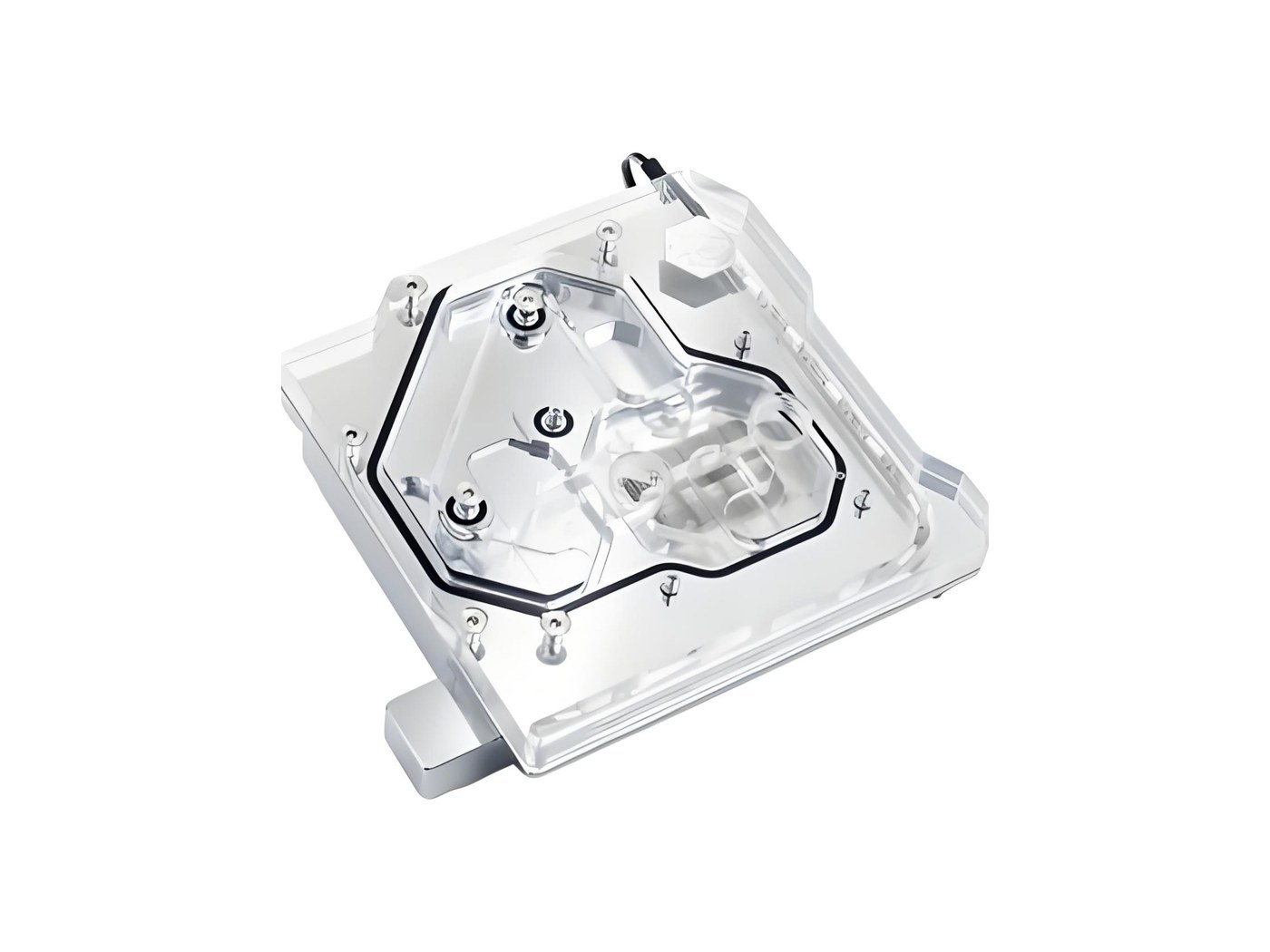

CPU Cold Plate & Micro-channel Cooler

Name: CPU Cold Plate & Micro-channel Cooler
Brand: HRX MACHINING
SKU: HRX-CP-02

Copper or aluminium cold plate for CPU, IHS and high-power electronics.

Tolerance±0.02 mm

MOQ20 pcs

Lead time12–18 days

AvailabilityMade to order

Base material

Channel design

Request a Quote WhatsApp

Description

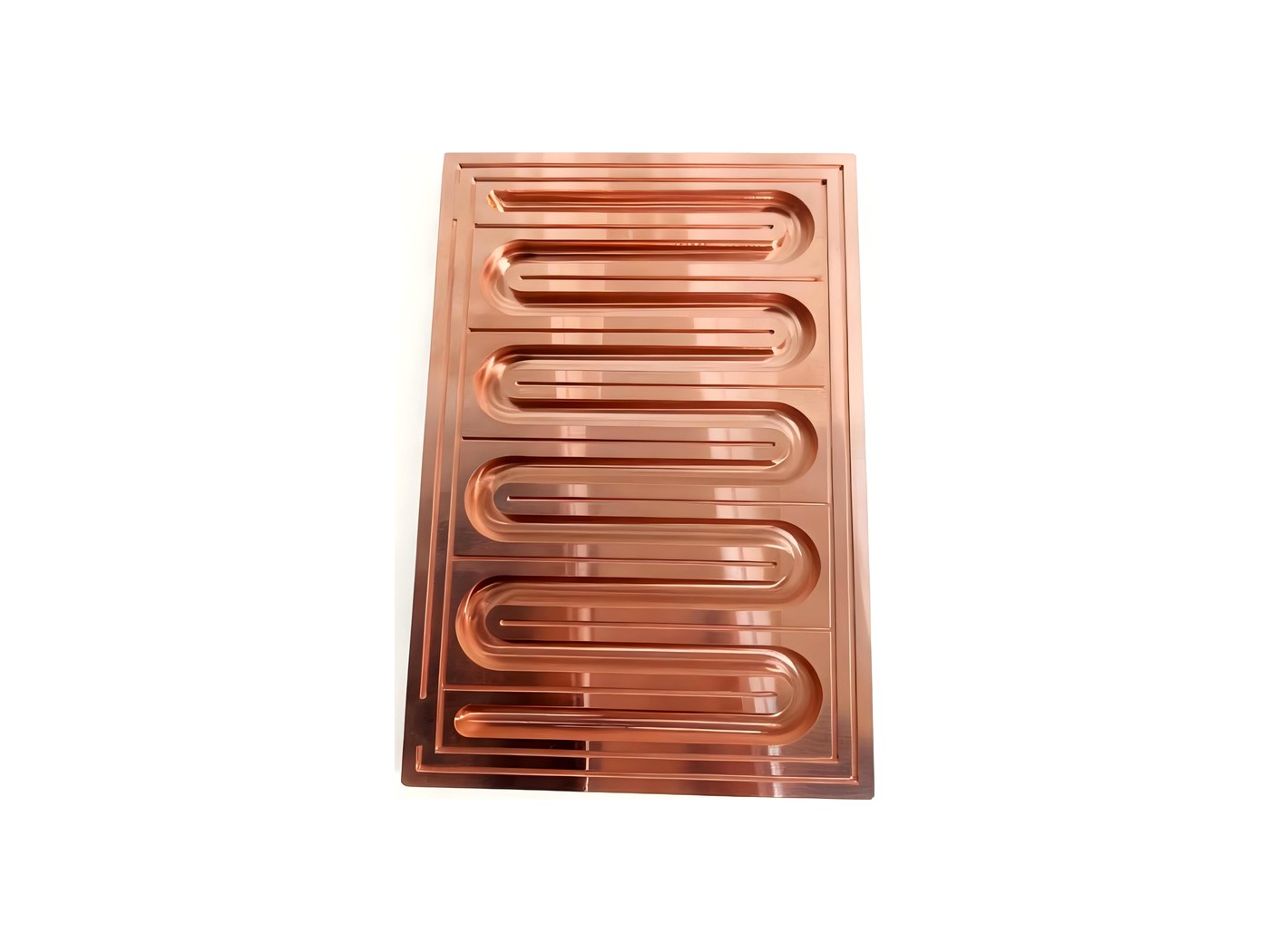

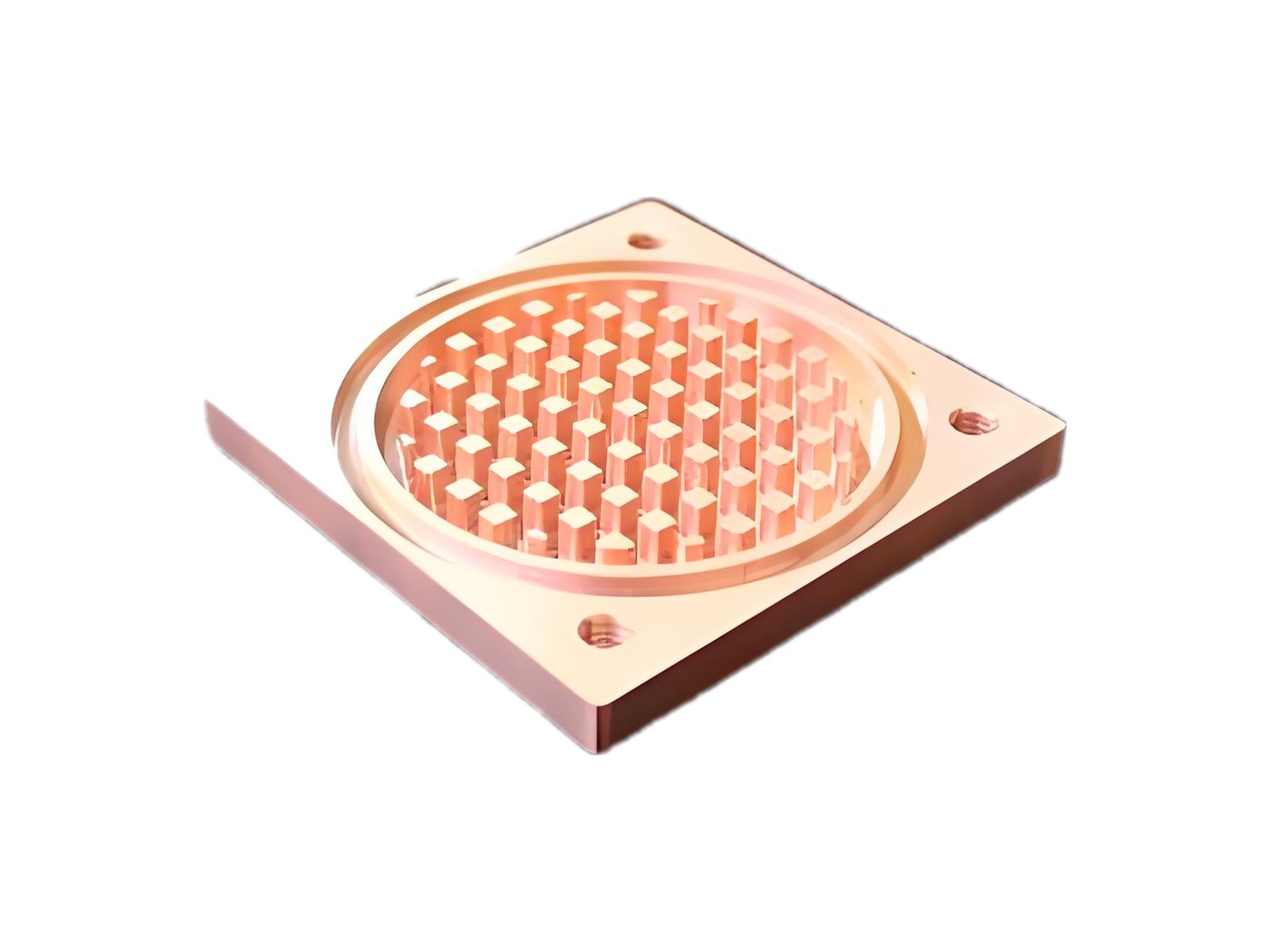

CPU cold plates look simple until you measure one against a heat-load target. We machine copper and aluminium plates with milled or skived micro-channels, jet-plate impingement patterns or a plain serpentine channel, depending on what your pump can actually push. Flatness on the contact face is held to 0.01 mm and the mounting hole pattern is machined to your socket pitch, so the block seats evenly instead of rocking on one corner.

Specifications

Base material	C1100 copper / Aluminium 6063-T5
Dimensions	40 × 40 – 120 × 120 mm
Micro-channel	0.3 – 1.0 mm channel, per design
Flatness	0.01 mm contact face
Surface roughness	Ra 0.8 µm (lapped Ra 0.4)
Thermal resistance	0.06 – 0.12 °C/W
Flow rate	0.5 – 2.5 L/min
Thread	G1/4" (other on request)
Pressure test	6 bar, 100 % tested
Compatibility	Intel / AMD socket pitch per drawing
MOQ	20 pieces
Lead time	12–18 working days

Key features

Channel design matched to your pump curve
0.01 mm flatness on the contact face
Socket pitch machined to your spec
Copper or aluminium to match the loop
Pressure tested, leak-free guarantee

Applications

CPU water blocks
Server and workstation cooling
IGBT and power electronics
Laser and medical device cooling

Scope of delivery

Contact face protected with film
Mounting kit on request
Pressure test record

Quality control

Every batch is checked on a coordinate measuring machine, with calipers, micrometers and gauge blocks on the shop floor. A dimensional report is available with each shipment and first-article inspection is free on series orders.

Frequently asked questions

How do you protect my design?

We sign an NDA before you send anything sensitive. Drawings are stored on an access-controlled server and only the programmers and operators assigned to your part can open them.

What file formats do you accept?

STEP (.stp/.step) or IGES (.igs) for 3D, PDF or DWG for 2D drawings with tolerances and surface finish. If you only have a physical sample, we can reverse-engineer it — and a photo with the key dimensions is enough for a budget estimate.

What tolerances can you hold?

Standard machining tolerance is ±0.05 mm, and ±0.01 mm on features you mark as critical. Locating bores can be held to H7. Tell us which dimensions actually matter — over-tolerancing is the fastest way to raise cost without improving the part.
